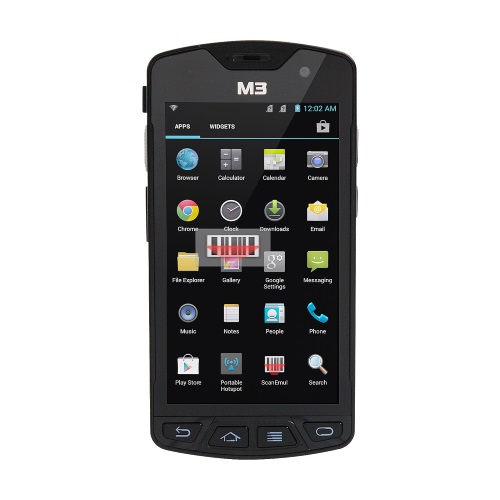

- M3 SM10
- Rugged full touch screen with Android
-
- - 1.2GHz Quadcore CPU
- Android 4.3 Jelly Bean
- Extended Battery 6,150mAh
- 1D / 2D scanner
- 5" full touch HD TFT LCD (Gorilla Glass 3)
- IEEE 802.11 a/b/g/n
- IP65 Sealing, 1.8m Drop (with protective boot)
- - 1.2GHz Quadcore CPU
-
tabbutton1
-
- Android 4.3 Jelly Bean
- Accessible to various accessories, with Android 4.3 Jelly Bean capable of applying Bluetooth Smart and minimizing power consumption.
-
- 1.2GHz Quadcore
- Powerful CPU speed with "High-Tier" guarantees faster graphic process and memory access.
-
- 5inch full touch HD TFT LCD (Gorilla Glass 3)
- Legible through 5 inch full-touch screen, easy to use even with wearing gloves, resistant to scratch and rugged applying Gorilla Glass 3.
-
- 1D, 2D Scanner
- Superior scanner/imager application provides real-time data capture and automatic data processing so that you can expect flexibility of work and cost efficiency.
-
- 8.0MP (rear) / 2.0MP (front) auto focus camera
- High resolution and auto focused functionality capture clear images of product and/or documentation.
-
- Battery (Li-Ion 3.8V 6,150mAh / 4,100mAh)
- M3 SM10 battery provides accurate remaining battery capacity so that the user can efficiently plan the usage of the PDA. Also, its large capacity is suitable for long time shifts.
-
- Slim & Light
- M3 SM10 is a slim and light but rugged PDA with optional RFID reader. It can be used for ticketing and/or asset management wherever the mobile device is needed.
-
- Endurance for temperature
- M3 SM10 can be operated within -20 degree to 60 degree and its storage temperature is -30 degree to 80 degree. It will guarantee the normal function at any temperature of working environment.
-
- IP65 Sealing / 1.8m drop (with protective boot)
- M3 SM10 is suitable to use in a tough environment withstands drops from 1.8m and protects against dust and water.
-
Drop rate with Standard Battery 4,100 mAh 1.8m with Boot
Drop rate with Extended Battery 6,150 mAh 1.8m with Boot
-
- User-centred design
- The user-centred design combines with great performance to deliver into the most harsh and hostile work environment's.
-
-
tabbutton1
- Физические характеристики
-
Размер (ШхВхГ) Миллиметры 76.4 x 154.8 x 21.6 Дюймы 3 x 6.09 x 0.85 Вес (ВКЛ. батарея) Граммы 280 (including st`d battery) Унции 9.8 ДИСПЛЕЙ Размер 5`" Тип HD TFT LCD Пикселы 720 x 1280 БАТАРЕЯ Тип Standard / Extended Аккумулятор Li-ion Питание 3.8 V 4,100mAh / 3.8 V 6,150mAh - эксплуатационные характеристики
-
МУЛЬТИ-ПРОЦЕССОР ЦПУ 1.2 GHz Quadcore Радио ОС Android 4.3 Jelly Bean ПАМЯТЬ ОПЕРАТИВНАЯ ПАМЯТЬ 1GB ПОСТОЯННАЯ ПАМЯТЬ 8GB слот Micro SD INTERFACE Client only Micro USB Сенсоры G-Сенсор, Датчик Приближения, Датчик Движения, Датчик Освещенности - Пользовательская среда
-
ТЕМПЕРАТУРА Операционный -20 to 60 ℃ Хранение -30 to 80 ℃ ВЛАЖНОСТЬ 95% non-condensing Испытание Падения Испытание на падение 1.2m / 1.8 m (with protective boot) Рейтинг IP IP65 (with protective boot) - Варианты Беспроводного Радио
-
сеть WWAN Сеть 2G
(GSM / GPRS / EDGE)850/900/1800 MHz Сеть 3G
(UMTS/HSPA+)800/2100 MHz сеть WAN Стандарт IEEE 802.11 Пропускная способность a/b/g/n Безопасность БЛЮТУС Класс Class II Версия 4.0 LE РАДИОЧАСТОТНАЯ ИДЕНТИФИКАЦИЯ Частота Стандарт система GPS A-GPS, GLONASS - Основные опции
-
СКАНЕР 1D O 2D O Большая дальность КАМЕРА Пиксели 2.0MP (Front)
8.0MP (Rear)Фокус Auto Focus КЛАВИАТУРА Буквенно-Цифровой Qwerty Azerty
* Содержание этой спецификации было сделано на основе "текущего состояния" продукта, и эта спецификация может быть изменена без предварительного уведомления.
-
