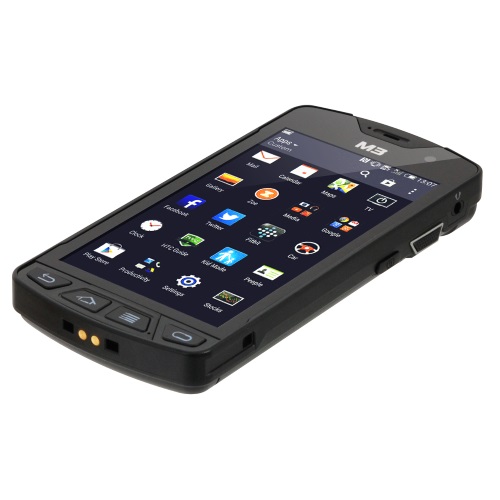

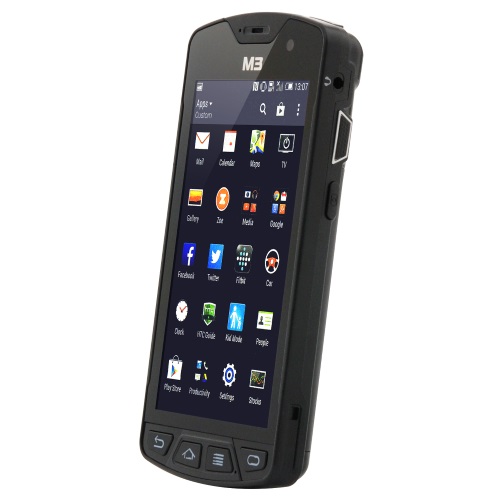

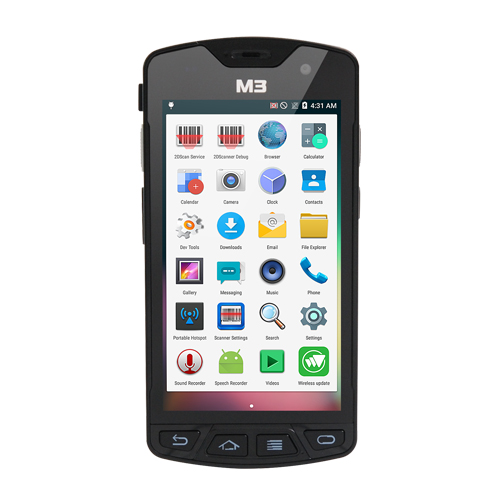

M3 SM10LTE
Rugged full touch screen with Android/Windows10 Iot Mobile Enterprise
  • - 1.3GHz Quadcore CPU
    - Dual OS : Android 5.1 Lollipop or Android 6.0 Mashmallow / Windows 10 Iot Mobile Enterprise
    - Extended Battery 6,150mAh
    - 1D / 2D scanner
    - 5" full touch HD TFT LCD (Gorilla Glass 3)
    - IEEE 802.11 a/b/g/n
    - IP65 Sealing(with protective boot), 1.8m Drop

  • tabbutton1

    • 1.3GHz Quadcore
      Powerful CPU speed with "High-Tier" guarantees faster graphic process and memory access.
    • 5inch full touch HD TFT LCD (Gorilla Glass 3)
      Legible through 5 inch full-touch screen, easy to use even with wearing gloves, resistant to scratch and rugged applying Gorilla Glass 3.
    • 1D, 2D Scanner
      Superior scanner/imager application provides real-time data capture and automatic data processing so that you can expect flexibility of work and cost efficiency.

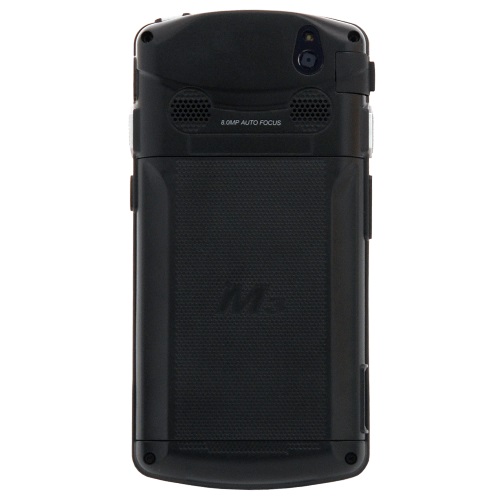

    • 8.0M (rear) / 5.0M (front) auto focus camera
      High resolution and auto focused functionality capture clear images of product and/or documentation.
    • Battery (Li-Ion 3.8V 6,150mAh / 4,100mAh)
      M3 SM10 battery provides accurate remaining battery capacity so that the user can efficiently plan the usage of the PDA. Also, its large capacity is suitable for long time shifts.
    • Slim & Light
      M3 SM10 is a slim and light but rugged PDA with optional RFID reader. It can be used for ticketing and/or asset management wherever the mobile device is needed.
    • Endurance for temperature
      M3 SM10 can be operated within -20 degree to 60 degree and its storage temperature is -30 degree to 80 degree. It will guarantee the normal function at any temperature of working environment.
    • 1.8m drop / IP65 Sealing (with protective boot)
      M3 SM10 is suitable to use in a tough environment withstands drops from 1.8m and protects against dust and water.

      Drop rate with Standard Battery 4,100 mAh 1.8m with Boot

      Drop rate with Extended Battery 6,150 mAh 1.8m with Boot

    • User-centred design
      The user-centred design combines with great performance to deliver into the most harsh and hostile work environment's.
  • tabbutton1

      Физические характеристики
      Размер (ШхВхГ)
      Миллиметры 76.4 x 154.8 x 21.6
      Дюймы 3 x 6.09 x 0.85
      Вес (ВКЛ. батарея)
      Граммы 280 (including st`d battery)
      Унции 11.8
      ДИСПЛЕЙ
      Размер 5`"
      Тип HD TFT LCD
      Пикселы 720 x 1280
      БАТАРЕЯ
      Тип Standard / Extended
      Аккумулятор Li-ion
      Питание 3.8 V 4,100mAh / 3.8 V 6,150mAh
      эксплуатационные характеристики
      МУЛЬТИ-ПРОЦЕССОР
      ЦПУ 1.3 GHz Quadcore
      Радио
      ОС
      Android 5.1 Lollipop / Android 6.0 Mashmallow + Windows 10 Iot Mobile Enterprise
      ПАМЯТЬ
      ОПЕРАТИВНАЯ ПАМЯТЬ 2GB
      ПОСТОЯННАЯ ПАМЯТЬ 16GB
      слот Micro SD (up to 32 GB)
      интерфейс USB
      Хост
      Клиент Micro USB
      Пользовательская среда
      ТЕМПЕРАТУРА
      Операционный -20 to 60 ℃
      Хранение -30 to 80 ℃
      ВЛАЖНОСТЬ
      95% non-condensing
      Испытание Падения
      Испытание на падение
      1.2m / 1.8 m (with protective boot)
      Рейтинг IP
      IP65 (with protective boot)
      Варианты Беспроводного Радио
      сеть WWAN
      Сеть 2G
      (GSM / GPRS / EDGE)
      850/900/1800/1900 MHz
      Сеть 3G
      (UMTS/HSPA+)
      850/900/2100 MHz
      Сеть 4G
      (FDD LTE)
      800/850/900/1800/2100/2600 MHz
      сеть WAN
      Стандарт IEEE 802.11
      Пропускная способность a/b/g/n
      Безопасность
      БЛЮТУС
      Класс Class II
      Версия V4.0 LE
      РАДИОЧАСТОТНАЯ ИДЕНТИФИКАЦИЯ
      Частота
      Стандарт
      система GPS
      A-GPS, GLONASS, BEIDOU
      Основные опции
      СКАНЕР
      1D O
      2D O
      Большая дальность
      КАМЕРА
      Пиксели 5.0M Pixels (Front)
      8.0M Pixels (Rear)
      Фокус Auto Focus
      КЛАВИАТУРА
      Буквенно-Цифровой
      Qwerty
      Azerty

      * Содержание этой спецификации было сделано на основе "текущего состояния" продукта, и эта спецификация может быть изменена без предварительного уведомления.
