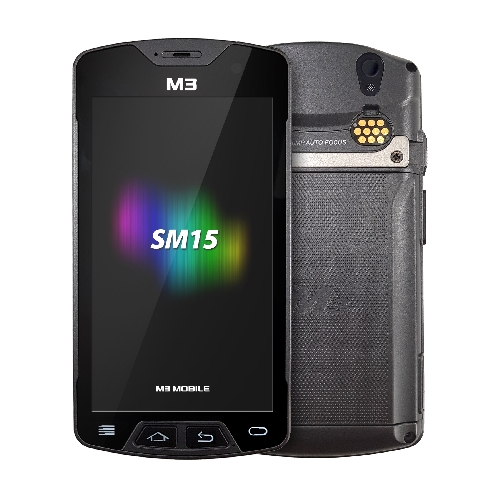

M3 SM15X
Highest Performance with Full HD
  • - Android 7.1 Nougat (Android 8.x is scheduled)
    - 2.2GHz Octacore CPU
    - Extended Battery 6,150mAh
    - 1D / 2D scanner
    - 5" full touch FHD IPS (Gorilla Glass 3)
    - IEEE 802.11 a/b/g/n/ac
    - IP65 Sealing(with protective boot), 1.8m Drop

  • tabbutton1

    • Android 7.1 Nougat (Android 8.x is scheduled)
      The optimized Android 7.1 platform enhances battery usage times.
      The powerful multi-task function improves speed.
    • 2.2GHz Octa-core
      M3 SM15X has a 2.2GHz 8 core AP, 46% faster then other processors.
    • FHD (Full High Definition Display), High Sensitivity Touch
      High capacity processing improves your business reliability
      M3 SM15 series has a high sensitivity touch panel which enables use with gloves and even in the wet.
    • 1D, 2D Scanner
      Superior scanner/imager application provides real-time data capture and automatic data processing so that you can expect flexibility of work and cost efficiency.
    • 16M (rear) auto focus camera
      High resolution and auto focused functionality capture clear images of product and/or documentation.
    • Fast charging and High Capacity Battery
      M3 SM15 series has a fast charging function.
      Full charge time is just 3 hours.
    • Slim & Light
      M3 SM15 series is a slim and light but rugged PDA with optional RFID reader. It can be used for ticketing and/or asset management wherever the mobile device is needed.
    • Endurance for temperature
      M3 SM15 series can be operated within -20 degree to 60 degree and its storage temperature is -30 degree to 80 degree. It will guarantee the normal function at any temperature of working environment.
    • 1.8m drop / IP65 Sealing (with protective boots)
      M3 SM15 series is suitable to use in a tough environment withstands drops from 1.8m and protects against dust and water.
    • User-centred design
      The user-centred design combines with great performance to deliver into the most harsh and hostile work environment's.
  • tabbutton1

      Физические характеристики
      Размер (ШхВхГ)
      Миллиметры 76.4 x 154.8 x 21.6
      Дюймы 3 x 6.09 x 0.85
      Вес (ВКЛ. батарея)
      Граммы 280 (including st`d battery)
      Унции 11.8
      ДИСПЛЕЙ
      Размер 5"
      Тип FHD IPS
      Пикселы 1080 x 1920
      БАТАРЕЯ
      Тип Standard / Extended
      Аккумулятор Li-ion
      Питание 3.8 V 4,100mAh / 3.8 V 6,150mAh
      эксплуатационные характеристики
      МУЛЬТИ-ПРОЦЕССОР
      ЦПУ 2.2 GHz Octa-core
      Радио
      ОС
      Android 7.1 Nougat
      ПАМЯТЬ
      ОПЕРАТИВНАЯ ПАМЯТЬ 4GB
      ПОСТОЯННАЯ ПАМЯТЬ 32GB
      слот Micro SD (up to 128 GB)
      интерфейс USB
      Хост
      Клиент Micro USB
      Пользовательская среда
      ТЕМПЕРАТУРА
      Операционный -20 to 60 ℃
      Хранение -30 to 80 ℃
      ВЛАЖНОСТЬ
      95% non-condensing
      Испытание Падения
      0.5M/1000Cycle, 1M/500Cycle (with Boots)
      Испытание на падение
      1.2M / 1.8M (with Boots)
      Рейтинг IP
      IP65
      Варианты Беспроводного Радио
      сеть WWAN
      Сеть 2G
      (GSM / GPRS / EDGE)
      850/900/1800 MHz
      Сеть 3G
      (UMTS/HSPA+)
      850/900/2100 MHz
      Сеть 4G
      (FDD LTE)
      800/850/900/1800/2100/2600 MHz
      сеть WAN
      Стандарт IEEE 802.11
      Пропускная способность a/b/g/n/ac
      Безопасность
      БЛЮТУС
      Класс Class II
      Версия V4.1 LE
      РАДИОЧАСТОТНАЯ ИДЕНТИФИКАЦИЯ
      Частота
      Стандарт
      система GPS
      A-GPS, GLONASS, BEIDOU
      Основные опции
      СКАНЕР
      1D O
      2D O
      Большая дальность
      КАМЕРА
      Пиксели 16M Pixels (Rear) / 5M Pixels (Front)
      Фокус Auto Focus
      КЛАВИАТУРА
      Буквенно-Цифровой
      Qwerty
      Azerty

      * Содержание этой спецификации было сделано на основе "текущего состояния" продукта, и эта спецификация может быть изменена без предварительного уведомления.
